Trailer hooking 101

2009 March 18

Today we’re going to have to talk about how a trailer hooks to a tractor. All you experienced drivers out there may just want to skip it and come back tomorrow. But if I don’t explain how it all works then the non-drivers among us won’t be able to laugh at the dick-head starring in tomorrow’s post and call him mean names… like idiot and dick-head and such.

King pin under trailer

King pin under trailer

First off, this is the king pin on the bottom side of the trailer near the front edge. It is just a small cylinder attached to a steel plate which is part of the floor of the trailer.

You will notice a smaller channel on the bottom part of the king pin. This is the area that the jaws of the fifth wheel (below) actually clamp around. Then the bigger bottom edge insures that the king pin can’t bounce up and out of the jaws even if you hit very bad roads.

Also, you will notice lots of grease on the bottom of the trailer. Since the connection between tractor and trailer is basically just a steel plate sitting on a steel platform, it pays to keep lots of grease involved in the interaction. Although all that grease can be mighty messy. We once worked for a company that used king pin locks on their trailers a lot. That was a round lock that slid up on the king pin and kept the fifth wheel from fitting around it. Good god was that a mess. Every time I had to take one of those locks off I would crawl under the trailer determined to stay clean and every time I came out I had fifth wheel grease on the back of my shirt, all over my hat, in my hair and on my hands. Ugh! We still have one but don’t ever use it.

Rear view of the fifth wheel

Rear view of the fifth wheel

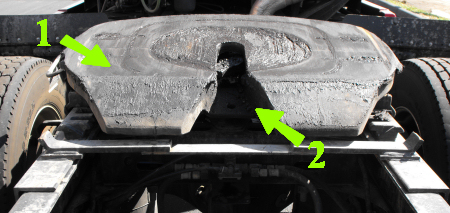

Ok so this is your fifth wheel on the back of your tractor. It is basically the platform that the front half of the trailer rides on. It is also the pivot point when making a turn. And when the king pin is connected to the fifth wheel it provides the “pull point” or whatever you would like to call the single point where the tractor exerts the force required to drag the trailer around the country.

Right off the top of my head, I can’t for the life of me remember what I was intending to draw your attention to with arrow number one. Maybe I was just going to reinforce that the area arrow number one is pointing at is the actual surface the trailer sits on. Maybe I just like drawing arrows. Who knows? We should probably move on to arrow number two since I know why I made that one.

Arrow number two is the channel the king pin slides through until it engages the jaws to clamp down around it. If you look at the end of the channel you can see the jaws although they are not engaged in that picture. You might think it’s kinda hard to connect trailer and tractor. I know when I first started out in trucking school that was one of the things I was most nervous about. It is surprisingly pretty easy. If you’ll notice, the channel the king pin travels is wider at the beginning and sort of funnels down to the jaw area. So even if you aren’t lined up perfectly the trailer will usually adjust as you back the tractor underneath it.

Important rules about hooking up to the trailer:

1.  Make sure the trailer is actually sitting on the fifth wheel. There should be no gap between them.

2.  Back slowly under the trailer but with enough force that you engage the fifth wheel jaws. In almost every truck I’ve ever driven you can actually hear the jaws engage, but once you are connected you should still do a tug test. A tug test is simply putting the tractor in a low forward gear and easing off the brake. If properly connected, the tractor will pull forward but be unable to move because the trailer brakes are still engaged.

3.  Once you set the tractor parking brake and get out of the truck you should actually duck under the trailer and visually double check that there is no gap between the fifth wheel and the trailer. You should also look to make sure the fifth wheel jaws are actually locked in place around the king pin.

4.  If the trailer is properly secured, go ahead and hook up your pigtail and air lines and raise the trailer’s landing gear. Then proceed to pre-trip the trailer.

It may sound like a lot, but it really takes very little time. I can do a complete drop-and-hook including a good inspection of the new trailer in less than fifteen minutes. And I think we’ve more than adequately covered my lazy streak in past posts, so I assume you will all understand what I mean when I say there really isn’t any excuse for not doing it properly. I mean if I’m willing to do if faithfully every single time how hard can it be, right?

Besides… there are consequences and repercussions to not hooking up properly. Tune in tomorrow for a fifth wheel related laugh.
